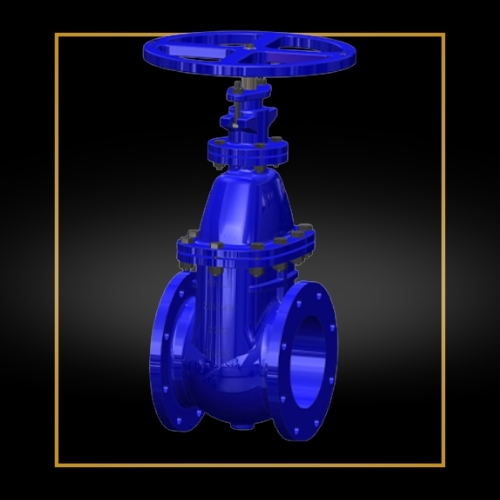

A sluice valve controls fluid flow by raising or lowering a gate inside the valve body. When fully open, it allows straight-line flow with minimal resistance. It is mainly used for isolation, not flow regulation.

Features:

• Full bore opening → minimal pressure loss
• Tight shut-off and leak-proof sealing
• Suitable for large diameter pipelines
• Long service life
• Can handle high pressure & temperature
• Bi-directional flow capability
• Corrosion-resistant coatings available

Specifications:

• Sizes : DN50-DN300
• Nominal pressure : PN1.6
• Medium Temperature : -10℃ ~ +45℃ Maximum
• Body : Material Cast Iron
• Stem Material : IS 6603 12Cr13
• Flange standard : IS 1538
• Medium Type : Water
